Position: – 12.496°N 89.233°W – Depth: 10.0 km
Distance from Exton PA: 30.0 Deg – 3,330 Km – Azimuth: 21.2 Deg

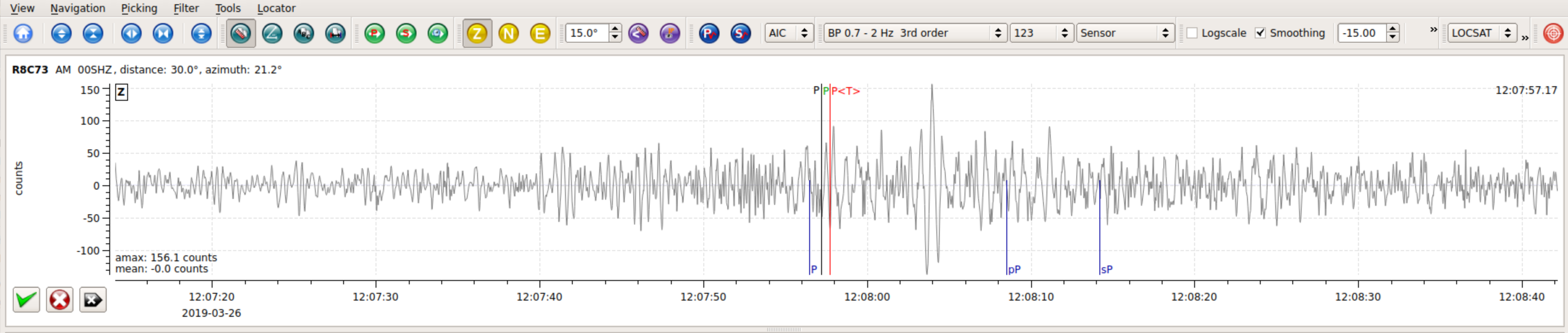

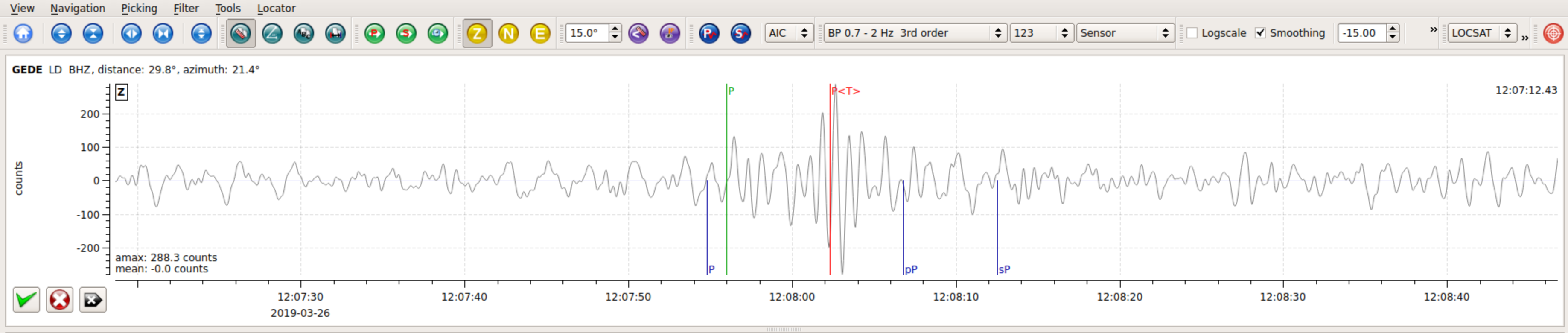

SeisComP3 traces for AM.R8C73.00.SHZ (Exton PA), and LD.GEDE.BHZ (Greenville DE) showing the P wave arrivals. These were the only two Philadelphia area stations to locate arrivals for this event.
Position: – 12.107°N 86.752°W – Depth: 95.7 km
Distance from Exton PA: 29.6 Deg – 3,281 Km – Azimuth: 17.5 Deg
SeisComP3 traces for AM.R8C73.00.SHZ (Exton PA), LD.WUPA.BHZ (West Chester PA), and LD.GEDE.BHZ (Greenville DE) showing the P wave arrivals.
Position: – 1.846°S 120.538°E – Depth: 10.0 km
Distance from Exton PA:139.3 Deg – 15,482 Km – Azimuth: 18.7 Deg

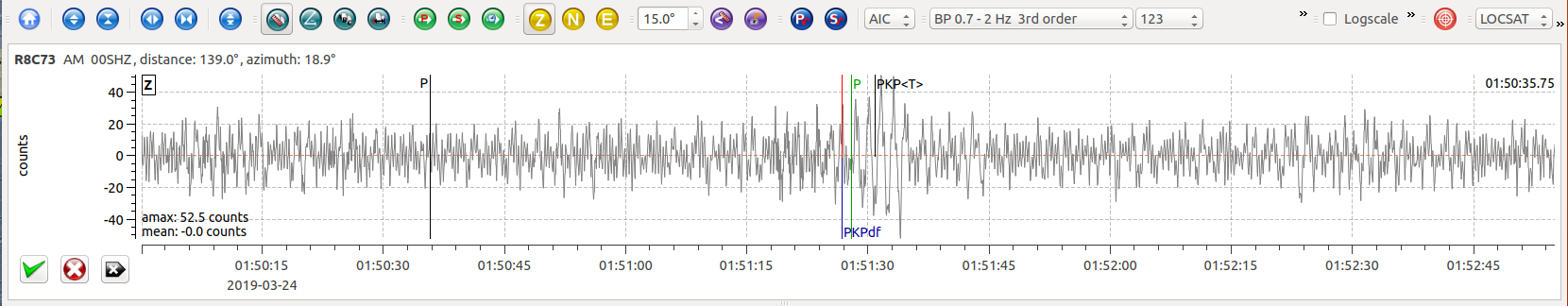

SeisComP3 traces for AM.R8C73.00.SHZ (Exton PA), LD.WUPA.BHZ (West Chester PA), and LD.GEDE.BHZ (Greenville DE) showing the P wave arrivals.
Position: – 4.560°N 76.280°W – Depth: 113.3 km
Distance from Exton PA: 35.4 Deg – 3,928 Km – Azimuth:0.9 Deg

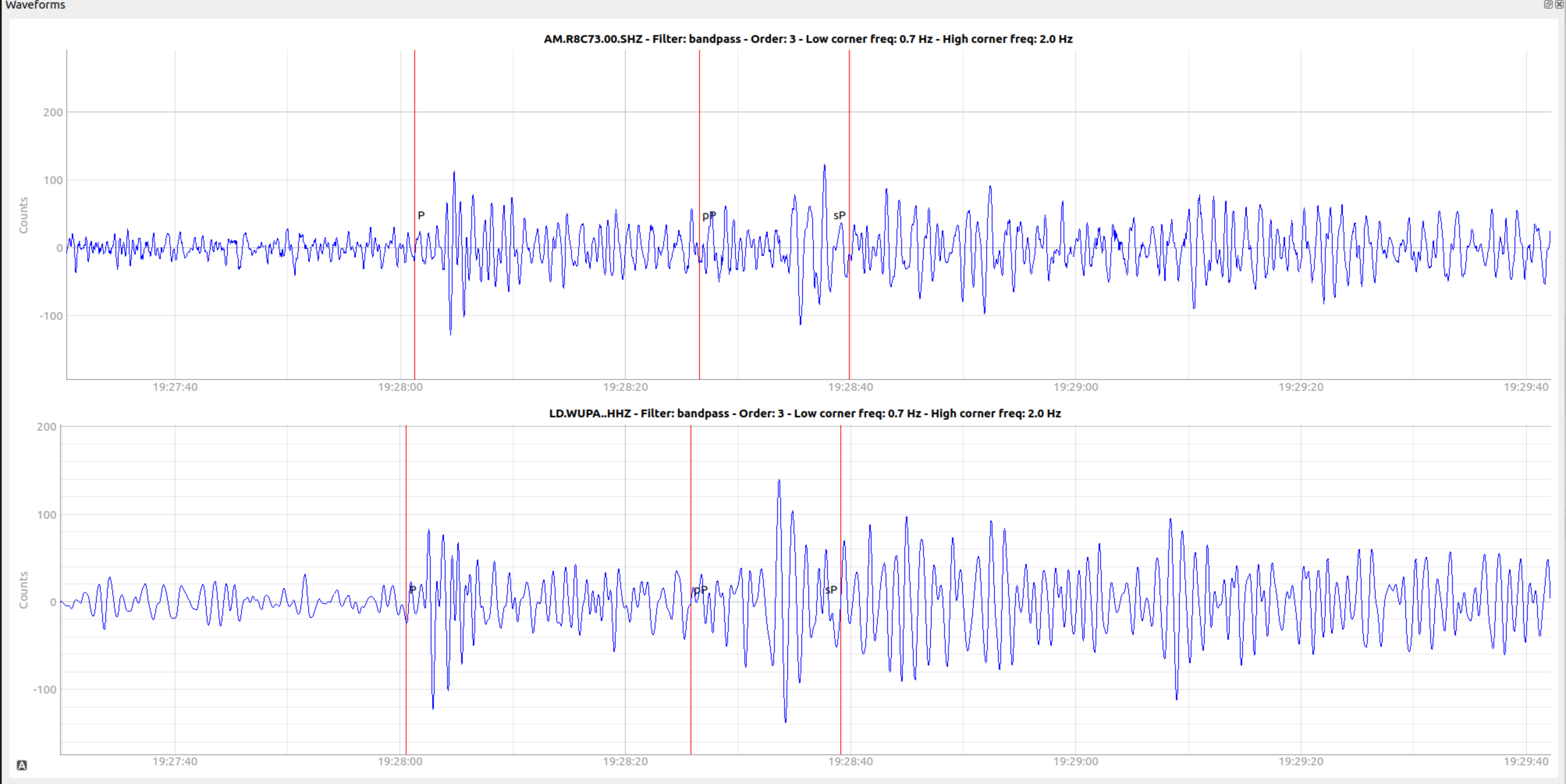

Waveforms for AM.R8C73.00.SHZ and LD.WUPA.BHZ (0.7 – 2.0 hz Butterworth bandpass filter).

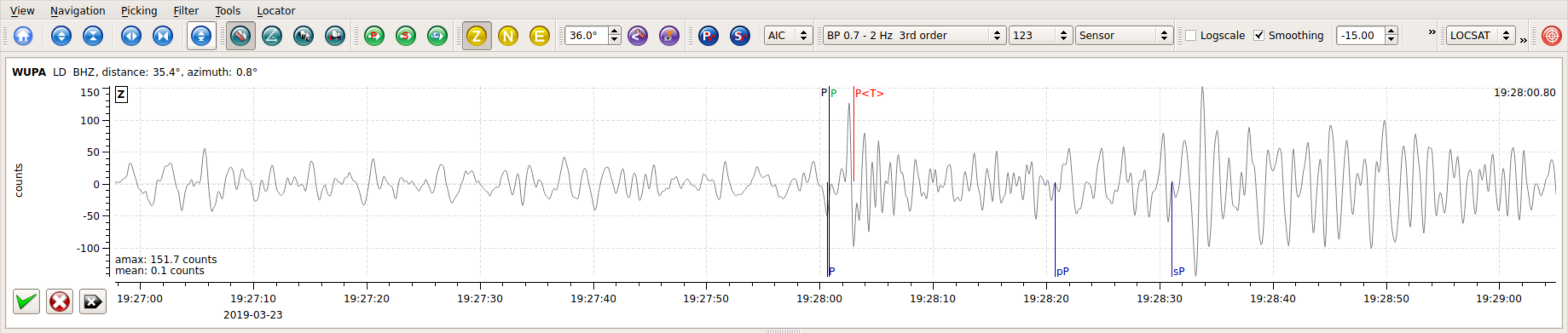

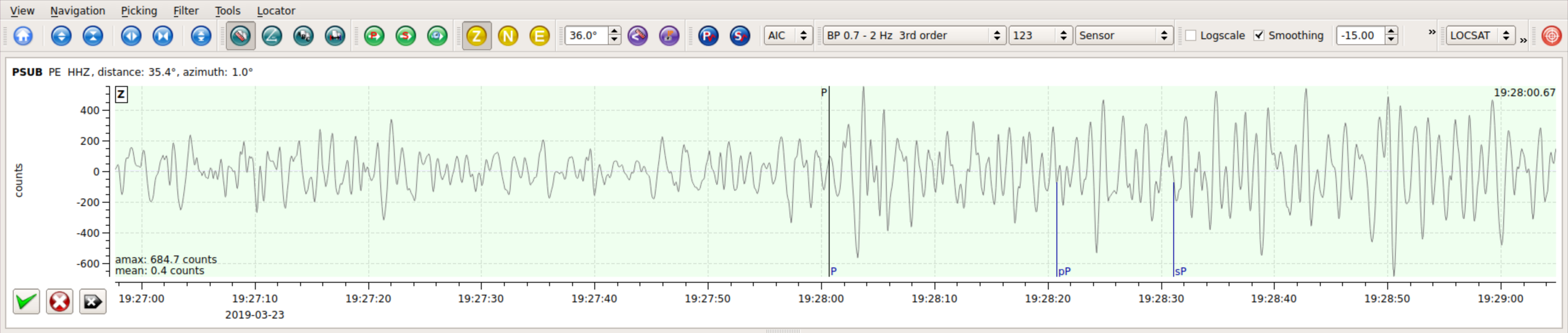

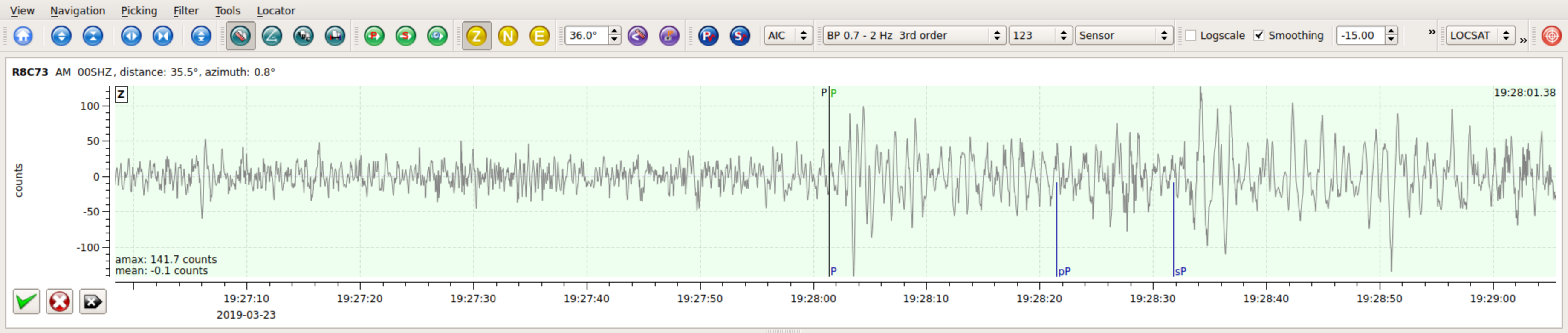

SeisComP3 traces for AM.R8C73.00.SHZ (Exton PA), LD.WUPA.BHZ (West Chester PA), and PE.PSUB.HHZ (Media PA) showing the P wave arrivals.

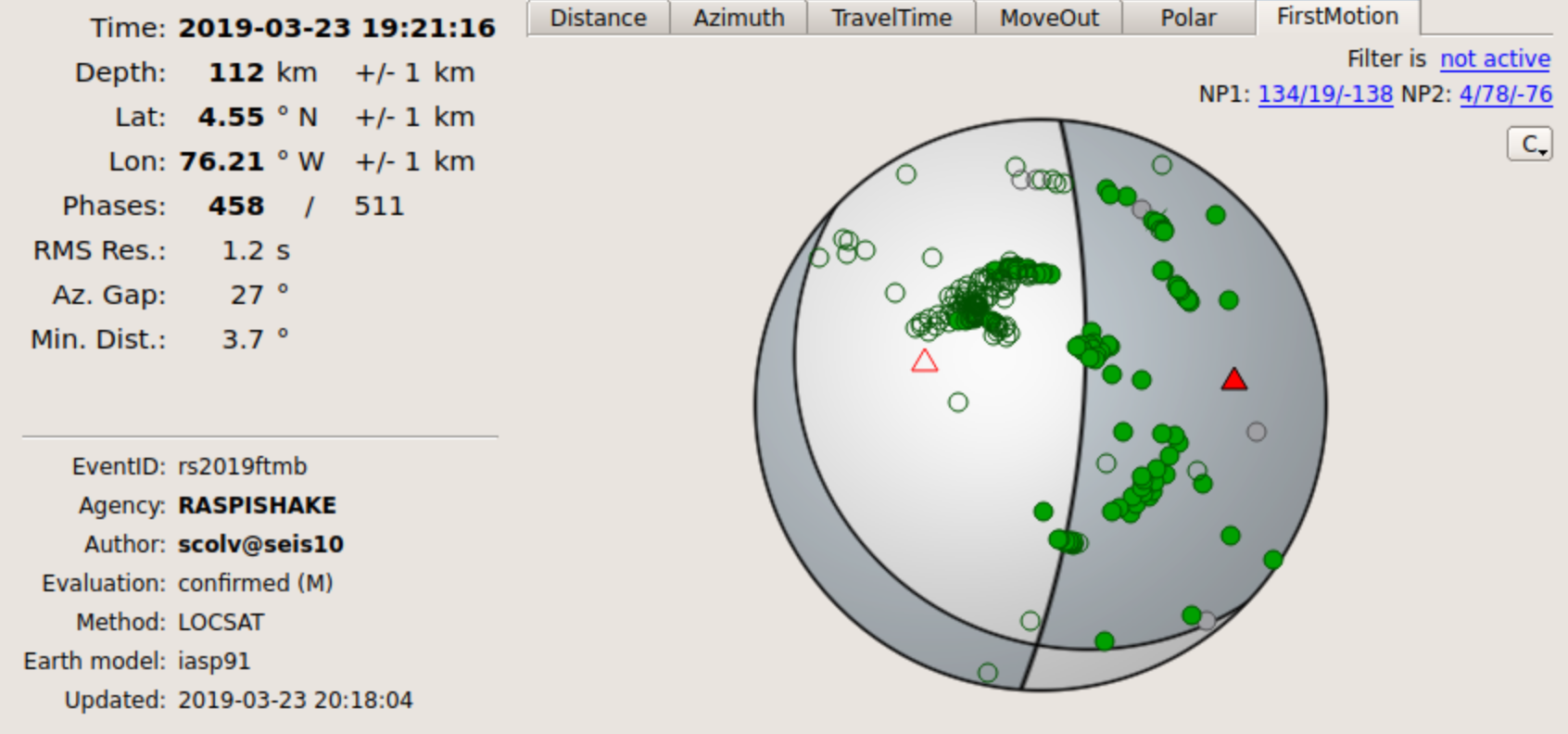

Fault plane solution for this event.
Position: – 15.595°S 167.651°E – Depth: 119.0 km
Distance from Exton PA: 120.5 Deg – 13,380 Km – Azimuth: 52.5 Deg

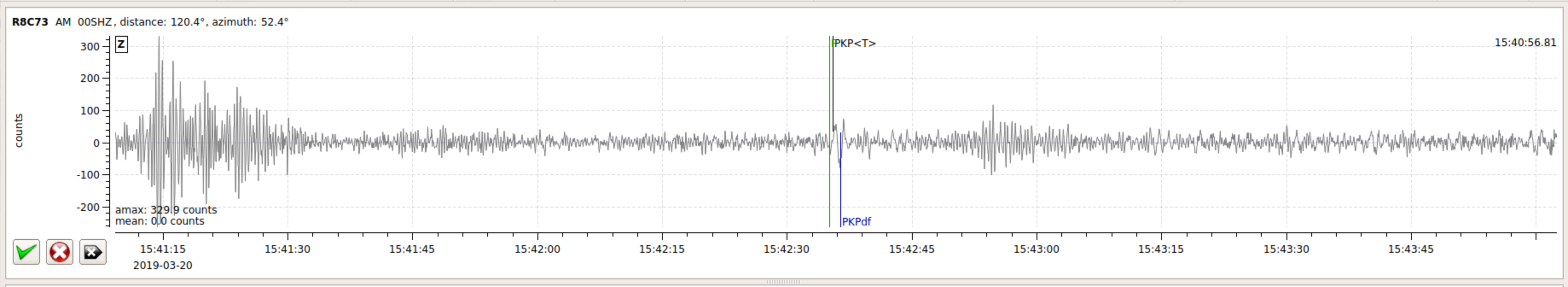

Detail of P wave arrival (no filter applied).

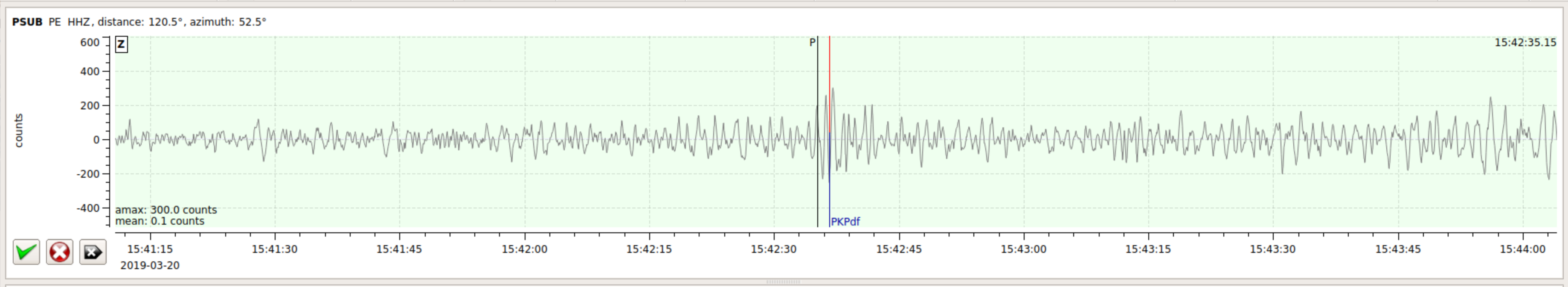

SeisComP3 traces for AM.R8C73.00.SHZ (Exton PA), LD.WUPA.BHZ (West Chester PA), and PE.PSUB.HHZ (Media PA) showing the P wave arrivals. There isn’t much to see here as only a weak spike was detected from this very distant event. Note however that the RaspberryShake (R8C73) was the only seismometer to actually generate an arrival in SeisComP3. The other two instruments, expensive lab grade seismometers at local universities did not generate arrivals in SeisComP.

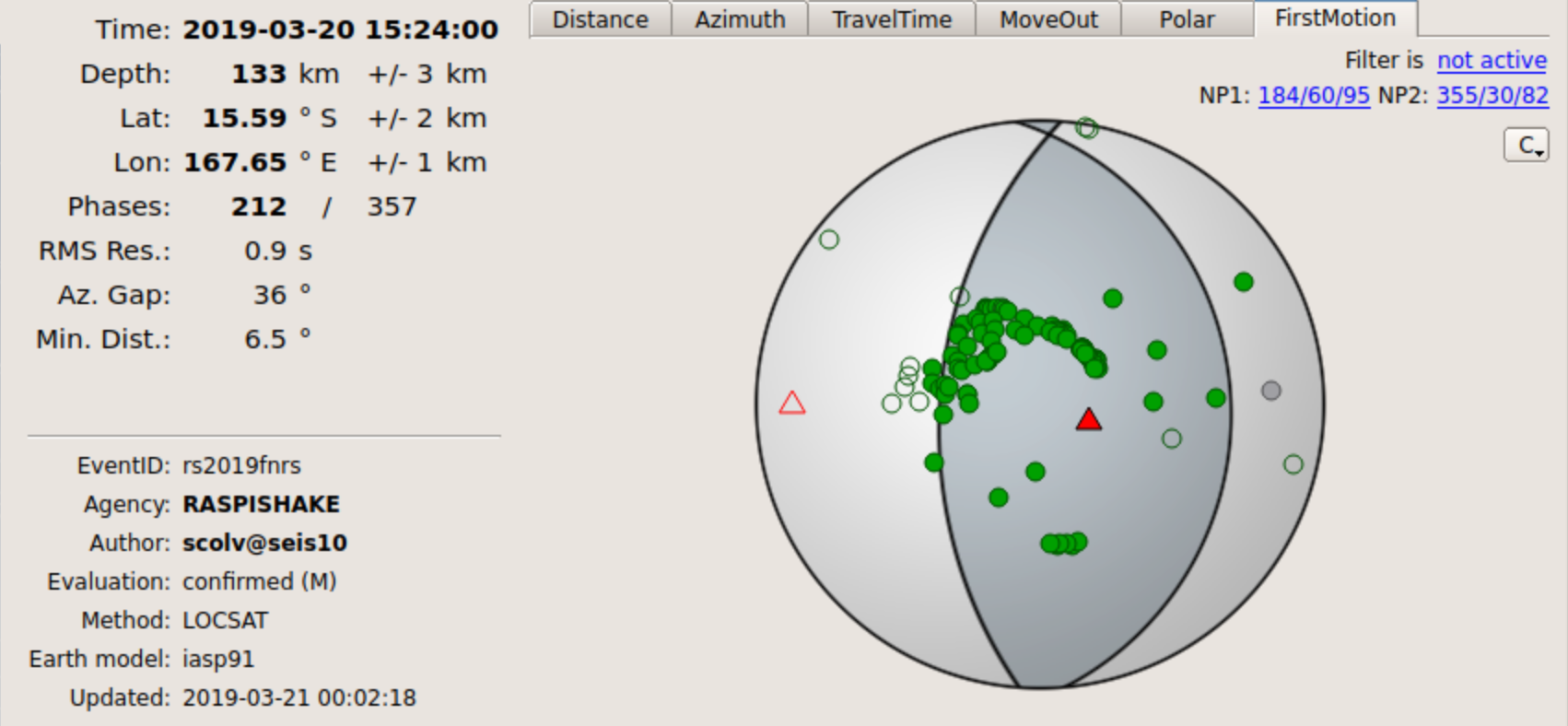

Fault plane solution for this event.
Position: – 17.857°S 65.891°W – Depth: 358.3 km
Distance from Exton PA: 58.4 Deg – 6,486 Km – Azimuth:351.2 Deg

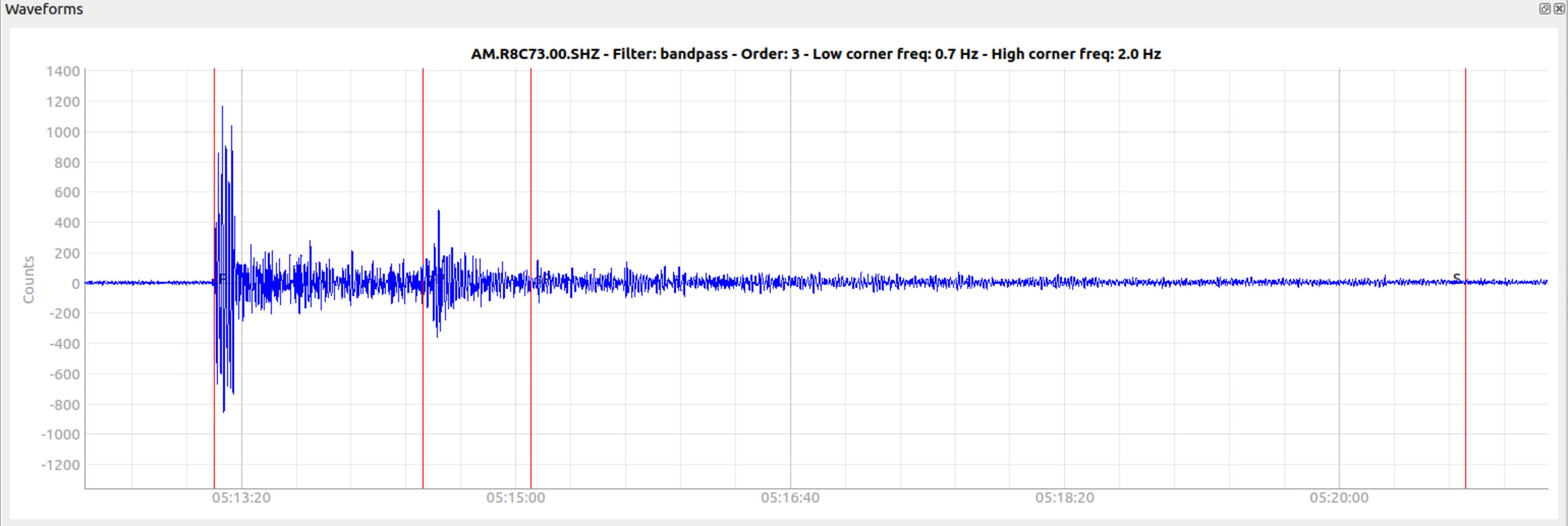

Waveform between the P and S wave arrivals (0.7 – 2.0 hz Butterworth bandpass filter).

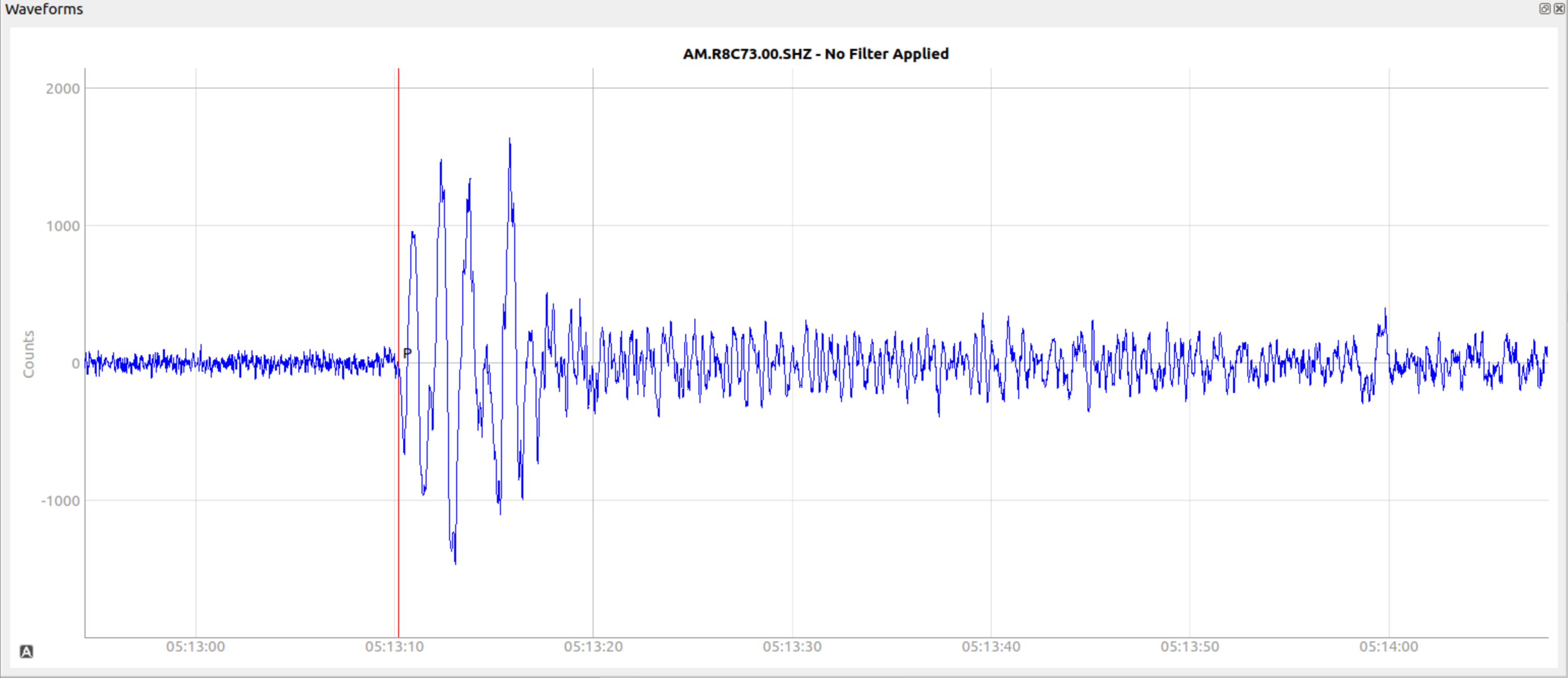

Detail of P wave arrival (no filter applied).

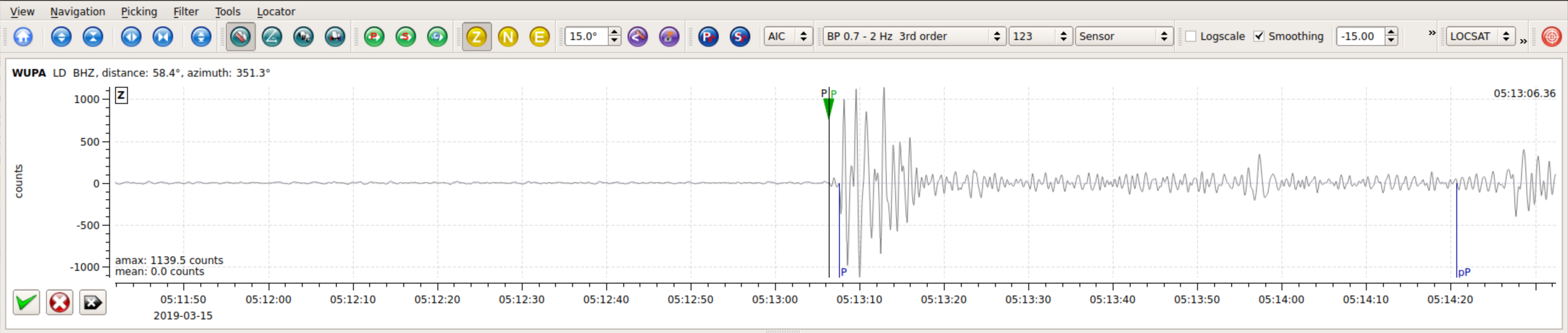

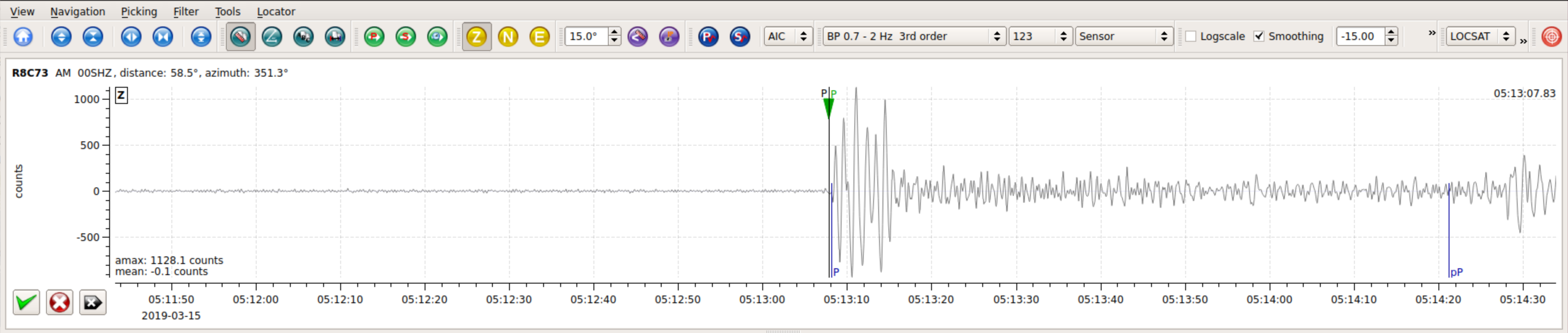

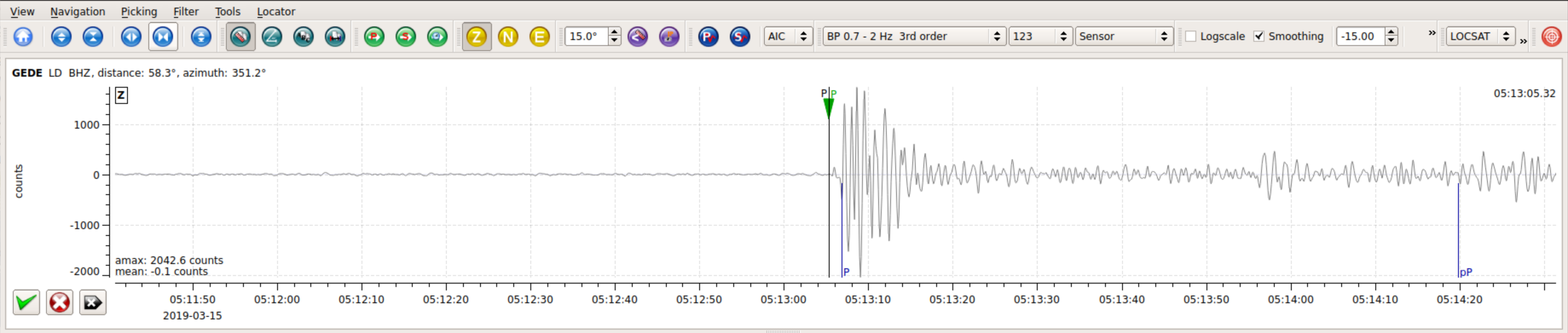

SeisComP3 traces for AM.R8C73.00.SHZ (Exton PA), LD.WUPA.BHZ (West Chester PA), and LD.GEDE.BHZ (Greenville DE) showing the P wave arrivals.
Fault plane solution for this event.
